Versa-Lok – Standard Unit

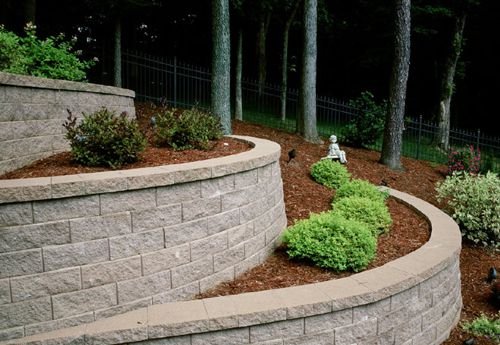

Our original, most popular unit, the Standard unit is the backbone of VERSA-LOK retaining wall systems. The unit’s solid construction and unique pinning system provide an endless array of design options, hardcore durability, and the fastest, easiest installation available. Not only straight retaining walls, but also curves, corners, columns, stairs, and freestanding walls are possible with the Standard unit, making it a universal favorite among homeowners, contractors and landscape architects, and designers alike. This all-purpose retaining wall block also is available as a Weathered texture option at selected dealers.

SKU: N/A Categories: ,

Description

Our original, most popular unit, the Standard unit is the backbone of VERSA-LOK retaining wall systems. The unit’s solid construction and unique pinning system provide an endless array of design options, hardcore durability, and the fastest, easiest installation available. Not only straight retaining walls, but also curves, corners, columns, stairs, and freestanding walls are possible with the Standard unit, making it a universal favorite among homeowners, contractors and landscape architects, and designers alike. This all-purpose retaining wall block also is available as a Weathered texture option at selected dealers.

The maximum stable, unreinforced VERSA-LOK wall height in best conditions, may be lower depending on soil, site, and loading conditions (including terraces). Taller walls need geogrid soil reinforcement, designed by a qualified engineer. Check your local building code requirements. Please contact your supplier or VERSA-LOK representative for assistance.

(DBL Split $7.95)

Additional information

Size

Finishes

Standard, Weathered

Color

, , , , , , , ,

Shapes

Standard

Standard Weathered

Dimensions

Width (face):16″ (406.4mm)
Width (rear):14″ (355.6mm)
Height:6″ (152.4mm)
Depth:12″ (304.8mm)
Face Area:0.667 ft2 (0.062m2)
Weight:82 lbs (37.19kg)
Weight / Face Area:123lbs/ft2 (600kg/m2)
Setback:3/4″ per unit
Batter/Cant:7.1 degrees
# Versa-Tuff Pins:2 per unit
Minimum Radius:8ft
Max Unreinforced Height:4 ft*
Max Geogrid Reinforced
Height:50+ ft
