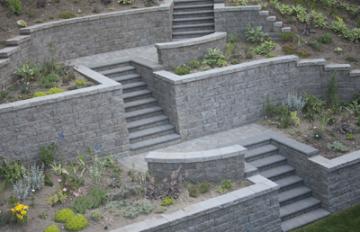

Cap units can put the finishing touch on your VERSA-LOK retaining wall. They’re available in two styles–A and B–and are 3-5/8″ tall by 14″ wide (at the face). Caps can be used with all types of designs. For straight walls, use both caps alternately. Outside curves require A caps only while inside curves use B caps.
| Size | |
|---|---|
| Set | Cap A, Cap B |
A Cap
Width (face):14″ (355.6mm)
Width (rear):12″ (304.8mm)
Height:3.625″ (92.1mm)
Depth:12″ (304.8mm)
Face Area:0.352 ft2 (0.032m2)
Weight:40 lbs
Weight / Face Area:114lbs/ft2
B Cap
Width (face):14″ (355.6mm)
Width (rear):16″ (406.4mm)
Height:3.625″ (92.1mm)
Depth:12″ (304.8mm)
Face Area:0.352 ft2 (0.032m2)
Weight:50 lbs
Weight / Face Area:142lbs/ft2
